Good ventilation is important in warehouses, factories, barns, and other large spaces where heat, humidity, dust, and stale air can build up.
A metal louvered exhaust fan provides a simple and effective way to remove unwanted air from a building. The WF Series combines a metal frame, high airflow performance, and automatic louvered shutters for practical ventilation in commercial and industrial environments.
What Is a Metal Louvered Exhaust Fan?
A metal louvered exhaust fan is a wall-mounted ventilation fan designed to exhaust air from inside a building to the outside.
Unlike a standard open exhaust fan, a louvered model has shutters covering the fan opening. When the fan operates, the louvers open as air is discharged. When the fan stops, the louvers close.
This design helps keep the fan opening covered when the fan is not running and can help reduce the entry of rain, dust, and debris.

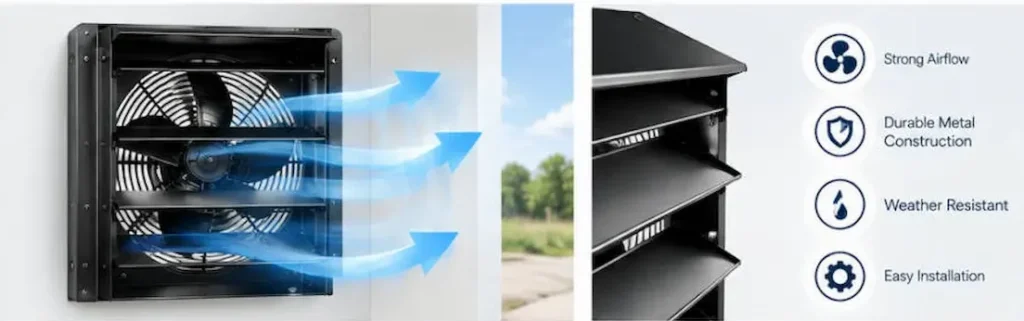

How Does a Louvered Exhaust Fan Work?
The working principle is straightforward:
Indoor air → Fan → Louvered shutters → Outside
The fan draws air from inside the building and pushes it through the louvers to the outside.
As hot, humid, or stale air is removed, fresh air can enter through doors, windows, air inlets, or other openings. This creates air movement and improves overall ventilation.
For large spaces, several exhaust fans can also be installed together to provide the required airflow.
Why Choose a Metal Louvered Exhaust Fan?
1. High Airflow
Large spaces often require significant air movement. The WF Series provides different airflow capacities to meet various ventilation requirements.
The WF-10, for example, provides 844 CFM, while the WF-16 provides 2,060 CFM.
2. Durable Metal Construction
The metal structure is suitable for applications where a robust fan housing is required.
It can be used in demanding environments such as factories, warehouses, agricultural buildings, and workshops.
3. Automatic Louvered Shutters
The louvers open when the fan is operating and close when the fan stops.
This helps protect the opening and provides a cleaner installation compared with an exposed fan.
4. Wall-Mounted Design
The fan can be installed directly on an exterior wall, making it a practical solution for buildings where ductwork is not required.

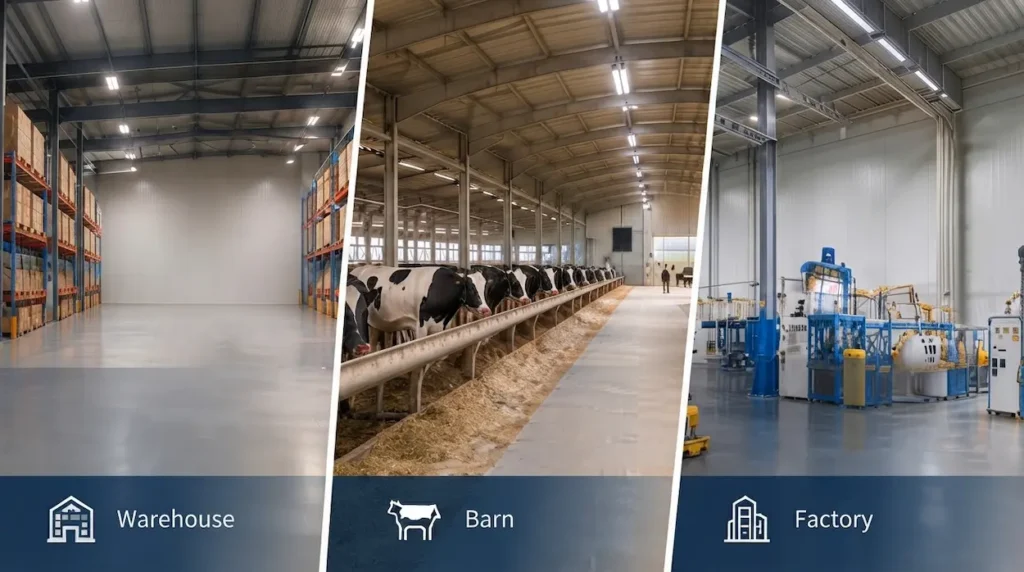

Where Can Metal Louvered Exhaust Fans Be Used?
The WF Series can be used in a wide range of commercial and industrial applications.
Warehouses
Warehouses can become hot and stuffy, particularly during warmer seasons. Exhaust fans can help remove hot air and improve air circulation.
Factories and Workshops
Manufacturing areas may generate heat, dust, odors, or stale air. Proper exhaust ventilation helps remove unwanted air from the workspace.
Barns
In barns, ventilation helps remove heat, humidity, and stale air while improving air movement.
WF Series Metal Louvered Exhaust Fans
Our WF Series is available in 10, 12, 14, and 16 inch sizes.
| Model | Size | Power | Speed | Airflow | Static Pressure | Noise |
|---|---|---|---|---|---|---|
| WF-10 | 10 inch | 20 W | 1700 RPM | 844 CFM | 55 Pa | 47 dBA |
| WF-12 | 12 inch | 30 W | 1600 RPM | 1030 CFM | 67 Pa | 48 dBA |
| WF-14 | 14 inch | 45 W | 1700 RPM | 1858 CFM | 65 Pa | 62 dBA |
| WF-16 | 16 inch | 70 W | 1350 RPM | 2060 CFM | 63 Pa | 52 dBA |
All models support 100–240 V, 50/60 Hz, providing flexibility for different markets and electrical requirements.
How to Choose the Right Size?
The correct fan size depends mainly on the required airflow and the size and use of the building.
As a general reference:
- WF-10: 844 CFM for smaller ventilation requirements
- WF-12: 1,030 CFM for medium ventilation requirements
- WF-14: 1,858 CFM for higher airflow requirements
- WF-16: 2,060 CFM for larger spaces
However, fan selection should also consider the building volume, ventilation rate, installation location, air resistance, and the number of fans required.
For a more accurate selection, the required airflow should be determined before choosing the fan model.
Metal Louvered Exhaust Fan vs. Standard Exhaust Fan
The main difference is the louvered shutter design.
A standard exhaust fan may require a separate external shutter or weather protection, while a louvered exhaust fan integrates the shutters into the fan structure.
This makes the WF Series a convenient option for wall-mounted ventilation where both airflow and protection of the fan opening are important.
Conclusion
A metal louvered exhaust fan is a practical ventilation solution for warehouses, factories, greenhouses, barns, and other large spaces.
The WF Series offers 10, 12, 14, and 16 inch models, with airflow from 844 to 2,060 CFM. The metal construction and integrated louvered shutters make the series suitable for a variety of commercial, industrial, and agricultural ventilation applications.
If you are looking for a metal louvered exhaust fan for OEM, wholesale, or project applications, contact us to discuss your required size, airflow, voltage, and application.
