An EC inline duct fan is a practical ventilation solution for applications that require efficient airflow, speed control, and reliable continuous operation. Compared with traditional AC fans, EC motor technology can provide better energy efficiency and more flexible speed control.
Our EC inline duct fan series is available in 4, 5, 6, and 8 inch sizes, making it suitable for different duct systems and ventilation requirements.
What Is an EC Inline Duct Fan?

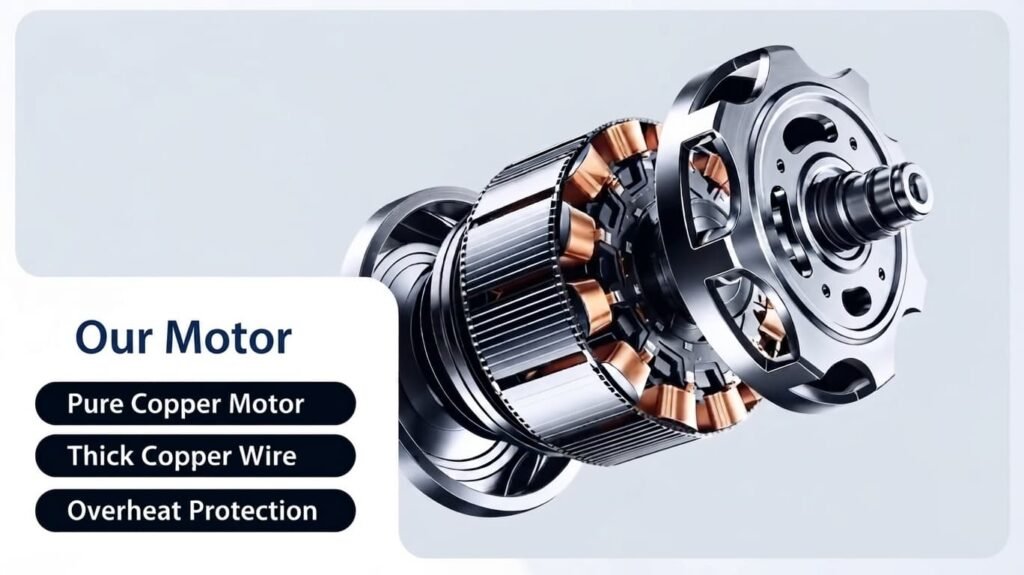

An EC inline duct fan combines an inline fan design with an electronically commutated (EC) motor.
The fan is installed directly inside a ventilation duct to move air from one location to another. The EC motor uses electronic control technology to regulate the motor more efficiently than a traditional AC motor.
This makes EC inline duct fans suitable for applications where airflow control, energy efficiency, and long-term operation are important.
Key Benefits of EC Inline Duct Fans
1. High Energy Efficiency
One of the main advantages of an EC motor is its high operating efficiency.
For ventilation systems that run for many hours every day, motor efficiency can have a significant impact on overall energy consumption. An EC inline duct fan can help reduce unnecessary power consumption while maintaining the required airflow.
This makes EC fans a good choice for continuous ventilation applications.
2. Flexible Speed Control
EC motors can be controlled electronically, allowing fan speed to be adjusted according to the ventilation requirement.
Instead of running the fan at full speed all the time, users can adjust the airflow when conditions change.
For example:
- Higher airflow when ventilation demand is high
- Lower speed when less airflow is required
- More flexible control for different operating conditions
This can help improve both energy efficiency and system control.
3. Suitable for Continuous Operation
EC inline duct fans are designed for applications where reliable and consistent ventilation is required.
They can be used in systems that operate for extended periods, including commercial, agricultural, and industrial ventilation applications.
4. Multiple Fan Sizes
Different ventilation systems require different duct sizes. A single fan size cannot meet every application.
Our EC inline duct fan range currently includes:
4 inch | 5 inch | 6 inch | 8 inch
This gives customers more flexibility when selecting a fan according to their existing duct system.
EC Inline Duct Fan Applications
EC inline duct fans can be used in a wide range of ventilation systems.
Greenhouse Ventilation
Greenhouses require controlled airflow to help maintain a suitable growing environment.
EC inline duct fans can provide adjustable airflow and can be integrated into ventilation systems where continuous air movement is required.
Grow Rooms
Ventilation is important for maintaining airflow and removing excess heat and humidity.
The adjustable speed of an EC fan allows airflow to be matched to changing ventilation requirements.
Commercial Ventilation
EC inline duct fans can be used in offices, commercial buildings, retail spaces, and other areas where air needs to be moved through ductwork.
Their energy-efficient motor design makes them suitable for systems that operate for long periods.
Workshops and Industrial Spaces
Workshops and production areas may require continuous air movement to improve ventilation.
Depending on the system design, EC inline duct fans can be used for general ventilation and air extraction.
How to Choose an EC Inline Duct Fan
When selecting an EC inline duct fan, fan size is only one factor to consider.
You should also look at:
- Airflow: How much air does the system need to move?
- Static pressure: Can the fan maintain airflow against duct resistance?
- Duct size: The fan should match the ventilation system.
- Motor type: EC motors are suitable when efficiency and speed control are important.
- Operating time: Continuous-use applications can benefit more from efficient motor technology.
- Control requirements: Consider whether adjustable fan speed is required.
Choosing the right combination of airflow, static pressure, duct size, and motor performance is important for achieving the best ventilation results.
Why Choose an EC Inline Duct Fan Manufacturer?
For distributors, wholesalers, and ventilation equipment suppliers, working directly with a manufacturer can provide more flexibility in product selection and supply.
Our EC inline duct fan series is available in 4″, 5″, 6″, and 8″ sizes, covering different duct ventilation requirements.
If you are looking for an EC inline duct fan for your ventilation products or projects, we can provide product information and discuss suitable models according to your requirements.
