Solar Ventilation

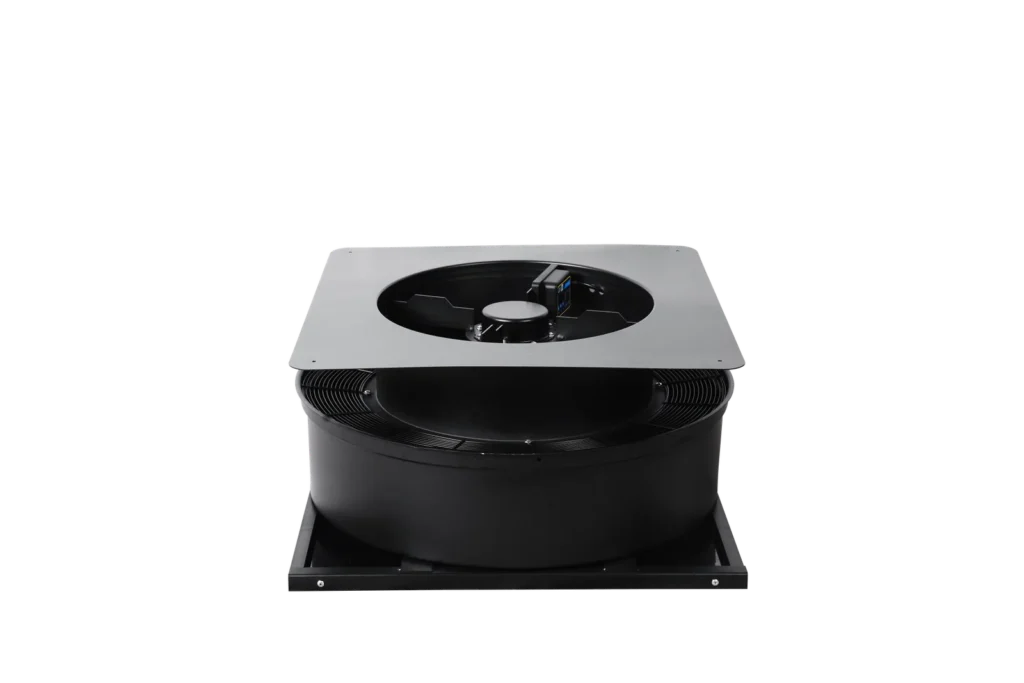

ZX500
500 mm · GALVANIZED STEEL
- Airflow
- 7000 m³/h
- Solar Panel Power
- 100w
- Motor Power
- 75W
- Duct Diameter
- 500 mm
PERFORMANCE CURVE
ZX500 is part of our Solar Ventilation family — Solar Roof Ventilation Fan. Engineered with a DC motor and a galvanized steel housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- DC
- Product Dimensions
- 750*750*400 mm
- Motor Power
- 75W
- Speed
- 1350 RPM
- Airflow
- 7000 m³/h
- Noise
- 50 dB(A)
- Material
- Galvanized Steel Aluminum Alloy
- Weight
- 22 kg
- Duct Diameter
- 500 mm
- Solar Panel Power
- 100w
- Coverage Area
- 120 m² m2
- Package Dimensions
- 820*820*450 mm
- Certifications
- CE
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
