Solar Ventilation

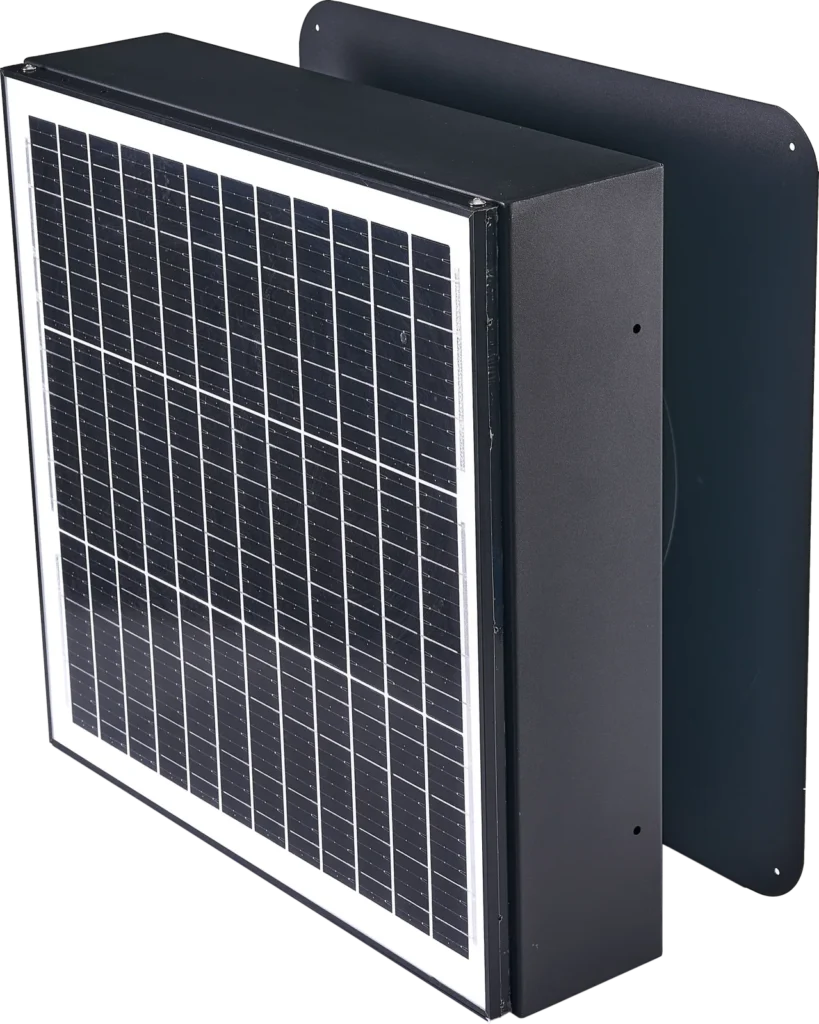

ZX320P
12" / 315MM · GALVANIZED STEEL
- Airflow
- 2000 m³/h
- Solar Panel Power
- 50W
- Motor Power
- 30W
- Duct Diameter
- 315 mm
PERFORMANCE CURVE
ZX320P is part of our Solar Ventilation family — Solar Roof Ventilation Fan. Engineered with a DC motor and a galvanized steel housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- DC
- Product Dimensions
- 565*565*260 mm
- Motor Power
- 30W
- Speed
- 1350 RPM
- Airflow
- 2000 m³/h
- Noise
- 45 dB(A)
- Material
- Galvanized Steel Aluminum Alloy
- Weight
- 10.5 kg
- Duct Diameter
- 315 mm
- Solar Panel Power
- 50W
- Coverage Area
- 30-40 m² m2
- Package Dimensions
- 600*600*300 mm
- Certifications
- CE
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
