Inline Duct Fans

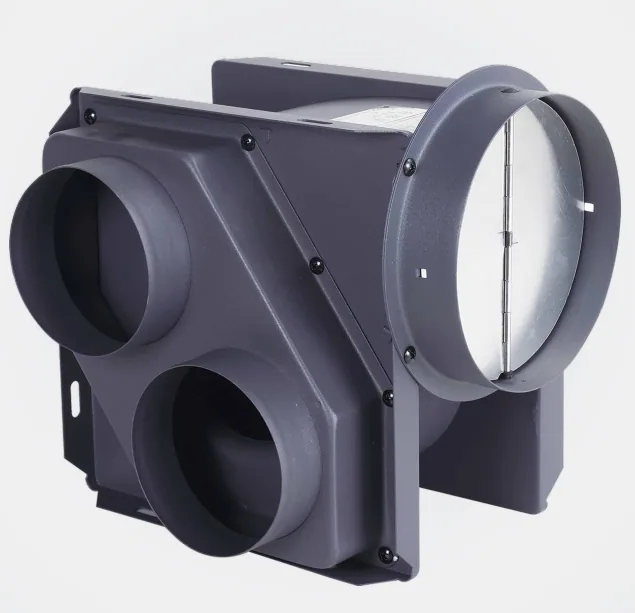

DPT10
4" / 100MM · METAL
- Airflow
- 160 m³/h
- Static Pressure
- 75 Pa
- Noise
- 38 dB(A)
- Rated Power
- 23 W
PERFORMANCE CURVE
DPT10 is part of our Inline Duct Fans family — Split-Type AC Inline Fan. Engineered with an AC motor and a metal housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- AC
- Voltage
- 220 V
- Frequency
- 50 Hz
- Rated Power
- 23 W
- Speed
- 1340 RPM
- Airflow
- 160 m³/h
- Static Pressure
- 75 Pa
- Noise
- 38 dB(A)
- Material
- Metal
- Weight
- 2.75 kg
- Duct Diameter
- 75/100 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
