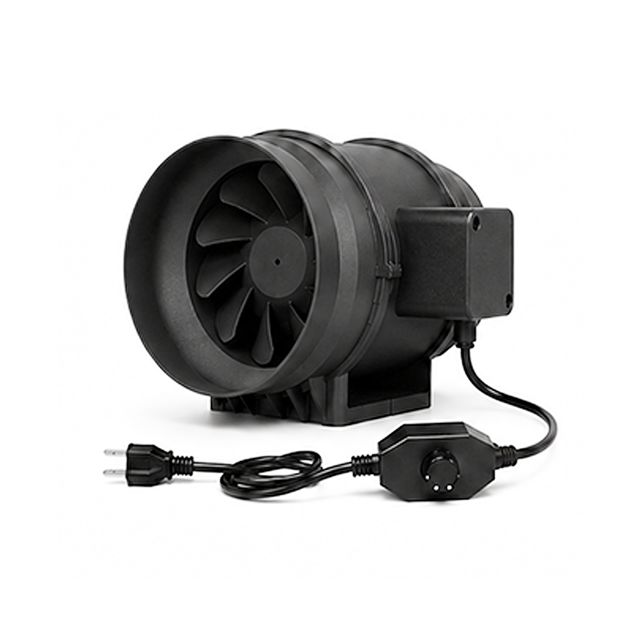

DF200-L 8-Inch EC Low-Profile Inline Duct Fan
8" / 200MM · POLYPROPYLENE
- Airflow
- 474 CFM
- Static Pressure
- 357 Pa
- Noise
- 50 dB(A)
- Rated Power
- 48 W
The DF200-L 8-Inch EC Low-Profile Inline Duct Fan is designed for Hydroponic Grow Rooms, Indoor Cultivation Exhaust, Restroom & Kitchen Exhaust. It provides airflow of 474 CFM, static pressure of 357 Pa, noise of 50 dB(A) and rated power of 48 W. Its published specifications and application data help distributors, OEM buyers and project teams evaluate the model without relying on unverified claims. The verified data also supports product comparison, system planning and quotation requests for the stated applications. It is intended for documented selection rather than generalized claims.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC
- Product Dimensions
- 302.2x273x236.5 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤0.4 A
- Rated Power
- 48 W
- Speed
- 1800 RPM
- Airflow
- 474 CFM
- Static Pressure
- 357 Pa
- Noise
- 50 dB(A)
- Material
- PP
- Duct Diameter
- 200 mm
- Package Dimensions
- 350*300*270 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
