Inline Duct Fans
DF200-AH
8" / 200MM · POLYPROPYLENE
- Airflow
- 830 CFM
- Static Pressure
- 720 Pa
- Noise
- 51 dB(A)
- Rated Power
- 180 W

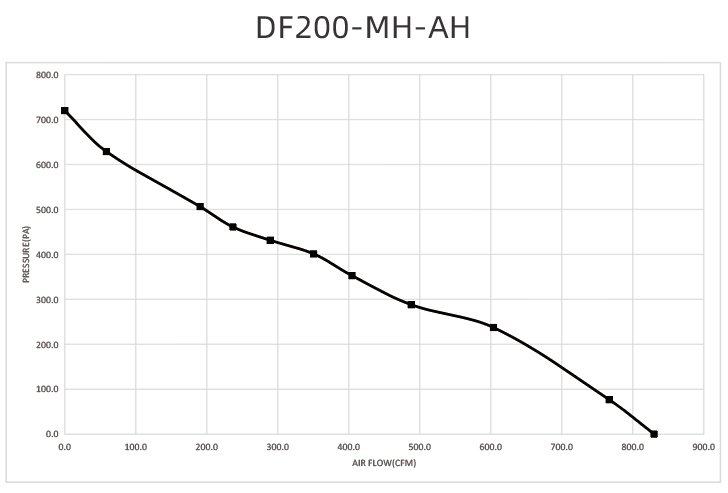

PERFORMANCE CURVE
DF200-AH is part of our Inline Duct Fans family — Mixed-Flow Inline Duct Fan. Engineered with an EC motor and a polypropylene housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC

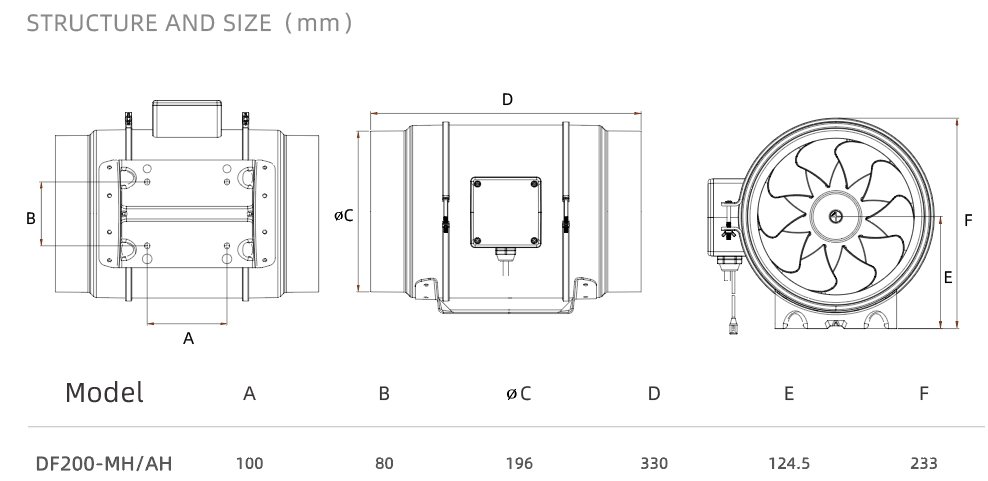

- Product Dimensions
- 330x252x235 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤2.5 A
- Rated Power
- 180 W
- Speed
- 3000 RPM
- Airflow
- 830 CFM
- Static Pressure
- 720 Pa
- Noise
- 51 dB(A)
- Material
- PP
- Weight
- 4.2 kg
- Duct Diameter
- 200 mm
- Package Dimensions
- 350*300*270 mm
- Master Carton Dimensions
- 615*365*566 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
