Inline Duct Fans

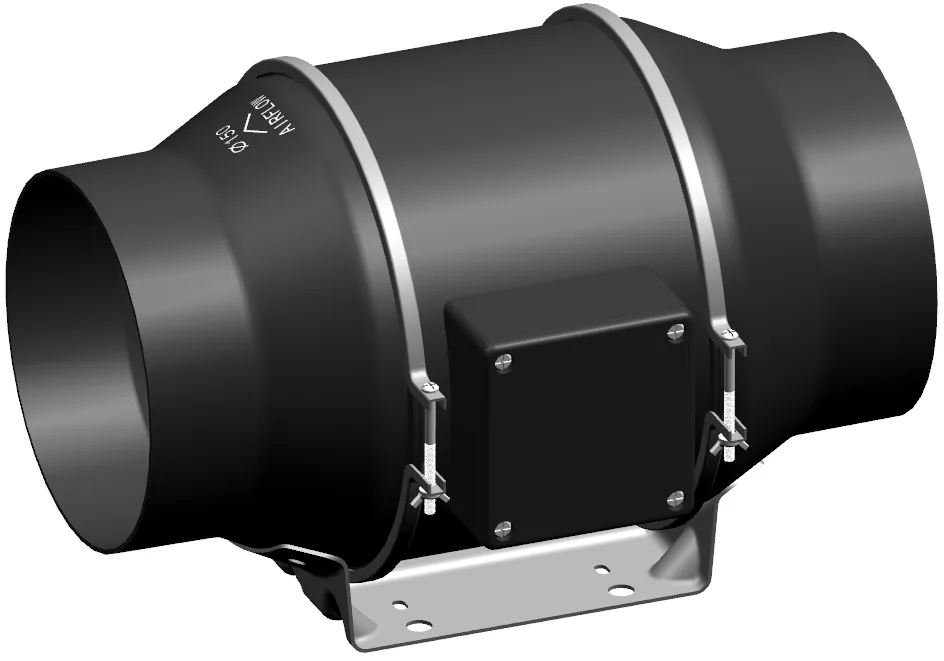

DF200-A 8-Inch EC Mixed-Flow Inline Duct Fan
8" / 200MM · POLYPROPYLENE
- Airflow
- 553 CFM
- Static Pressure
- 320 Pa
- Noise
- 32 dB(A)
- Rated Power
- 70 W
The DF200-A 8-Inch EC Mixed-Flow Inline Duct Fan is designed for Hydroponic Grow Rooms, Indoor Cultivation Exhaust, Restroom & Kitchen Exhaust. It provides airflow of 553 CFM, static pressure of 320 Pa, noise of 32 dB(A) and rated power of 70 W. Its published specifications and application data help distributors, OEM buyers and project teams evaluate the model without relying on unverified claims. The verified data also supports product comparison, system planning and quotation requests for the stated applications. It is intended for documented selection rather than generalized claims.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC

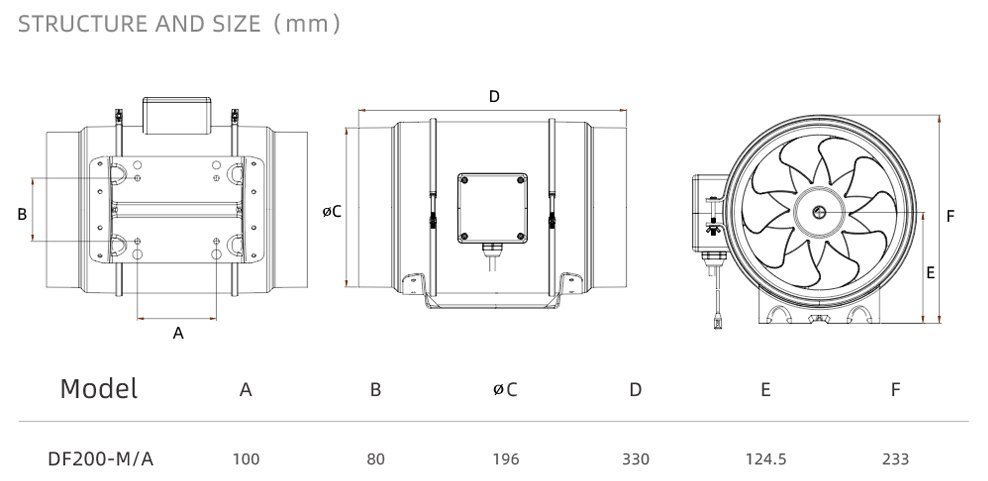

- Product Dimensions
- 330x252x235 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤2.5 A
- Rated Power
- 70 W
- Speed
- 2000 RPM
- Airflow
- 553 CFM
- Static Pressure
- 320 Pa
- Noise
- 32 dB(A)
- Material
- PP
- Weight
- 4 kg
- Duct Diameter
- 200 mm
- Package Dimensions
- 350*300*270 mm
- Master Carton Dimensions
- 615*365*566 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
