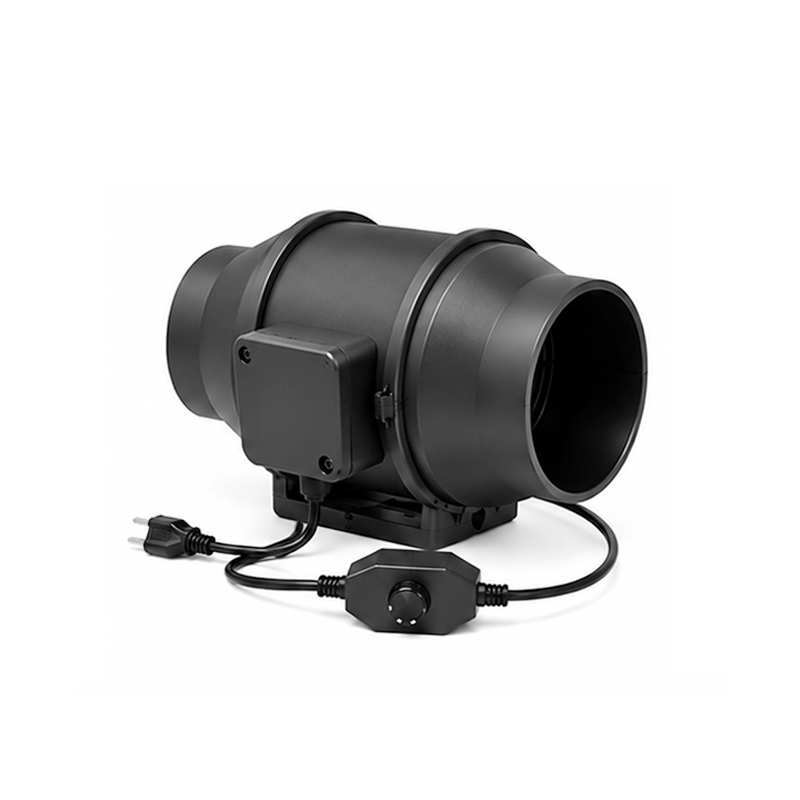

Inline Duct Fans
DF150-L
6" / 150MM · POLYPROPYLENE
- Airflow
- 318 CFM
- Static Pressure
- 277 Pa
- Noise
- 38 dB(A)
- Rated Power
- 30 W
PERFORMANCE CURVE
DF150-L is part of our Inline Duct Fans family — Low-Profile Inline Duct Fan. Engineered with an EC motor and a polypropylene housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC
- Product Dimensions
- 309x251x214 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤0.3 A
- Rated Power
- 30 W
- Speed
- 2300 RPM
- Airflow
- 318 CFM
- Static Pressure
- 277 Pa
- Noise
- 38 dB(A)
- Material
- PP
- Duct Diameter
- 150 mm
- Package Dimensions
- 340*260*230 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
