Inline Duct Fans

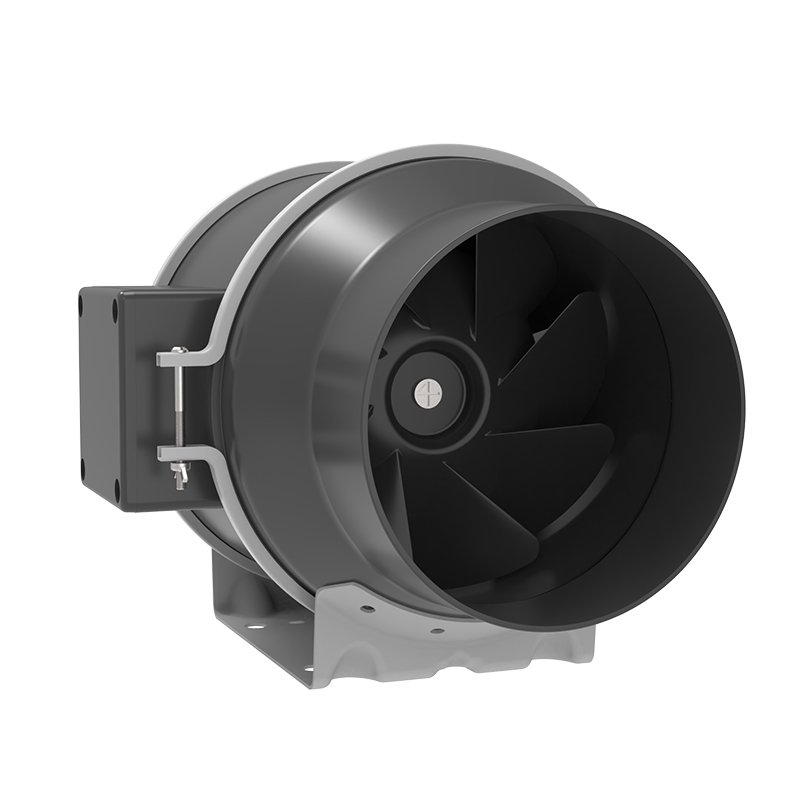

DF150-AS 6-Inch EC Mixed-Flow Inline Duct Fan
6" / 150MM · POLYPROPYLENE
- Airflow
- 402 CFM
- Static Pressure
- 450 Pa
- Noise
- 34 dB(A)
- Rated Power
- 65 W
The DF150-AS 6-Inch EC Mixed-Flow Inline Duct Fan is designed for Hydroponic Grow Rooms, Indoor Cultivation Exhaust, Restroom & Kitchen Exhaust. It provides airflow of 402 CFM, static pressure of 450 Pa, noise of 34 dB(A) and rated power of 65 W. Its published specifications and application data help distributors, OEM buyers and project teams evaluate the model without relying on unverified claims. The verified data also supports product comparison, system planning and quotation requests for the stated applications. It is intended for documented selection rather than generalized claims.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC

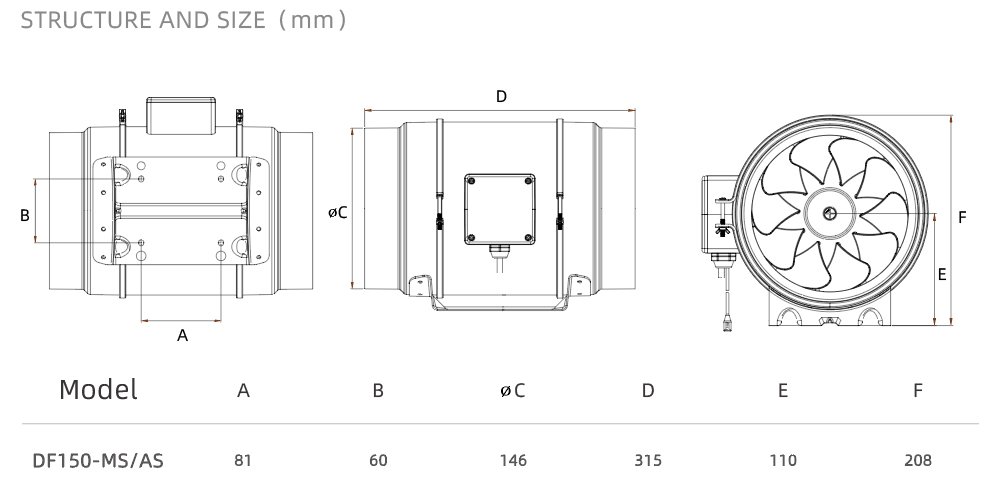

- Product Dimensions
- 315x225x210 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤1.0 A
- Rated Power
- 65 W
- Speed
- 2800 RPM

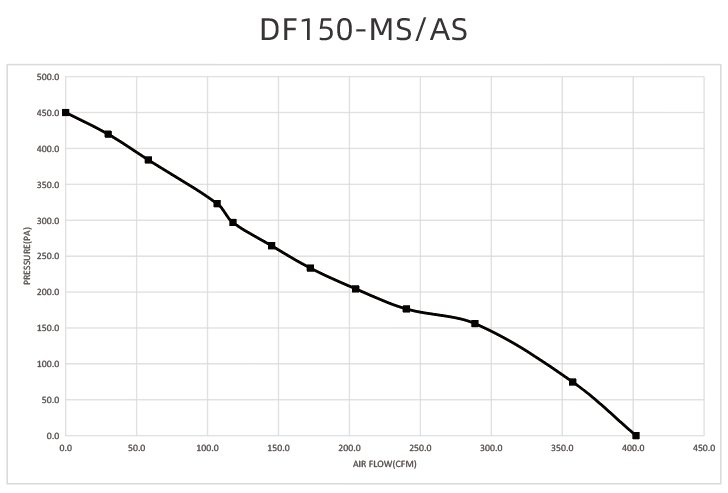

- Airflow
- 402 CFM
- Static Pressure
- 450 Pa
- Noise
- 34 dB(A)
- Material
- PP
- Weight
- 3.1 kg
- Duct Diameter
- 150 mm
- Package Dimensions
- 340*260*230 mm
- Master Carton Dimensions
- 540*355*493 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
