Inline Duct Fans

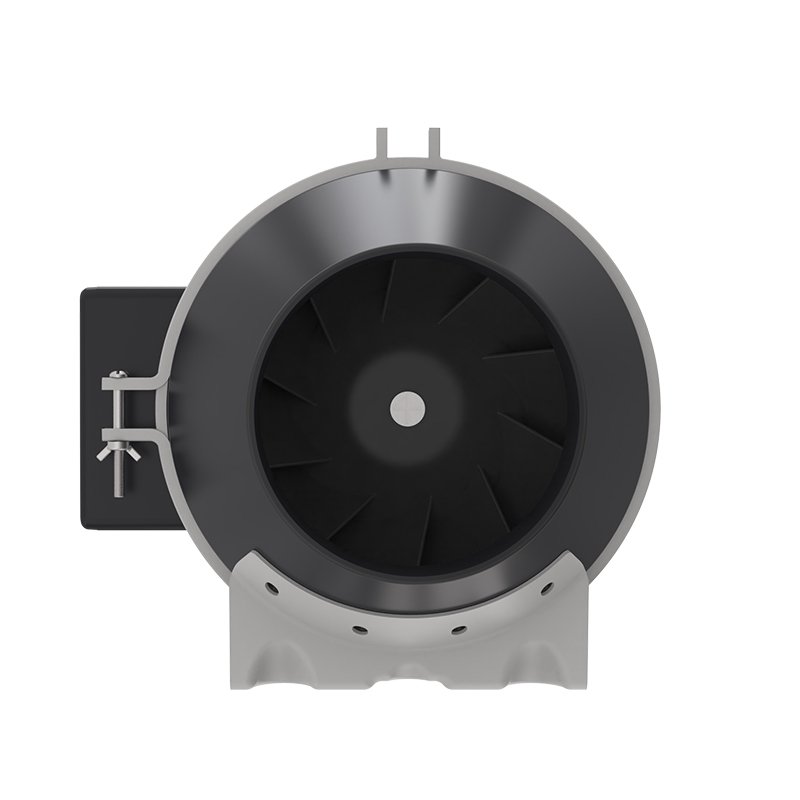

DF125-AS 5-Inch EC Mixed-Flow Inline Duct Fan
5" / 125MM · POLYPROPYLENE
- Airflow
- 245 CFM
- Static Pressure
- 275 Pa
- Noise
- 29 dB(A)
- Rated Power
- 30 W
The DF125-AS 5-Inch EC Mixed-Flow Inline Duct Fan is designed for Hydroponic Grow Rooms, Indoor Cultivation Exhaust, Restroom & Kitchen Exhaust. It provides airflow of 245 CFM, static pressure of 275 Pa, noise of 29 dB(A) and rated power of 30 W. Its published specifications and application data help distributors, OEM buyers and project teams evaluate the model without relying on unverified claims. The verified data also supports product comparison, system planning and quotation requests for the stated applications. It is intended for documented selection rather than generalized claims.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC

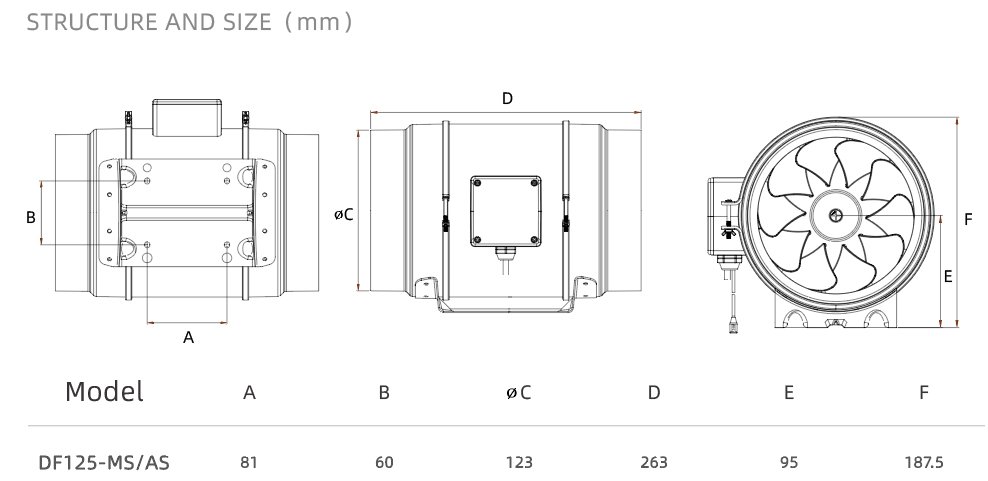

- Product Dimensions
- 260x201x180 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤0.45 A
- Rated Power
- 30 W
- Speed
- 3000 RPM

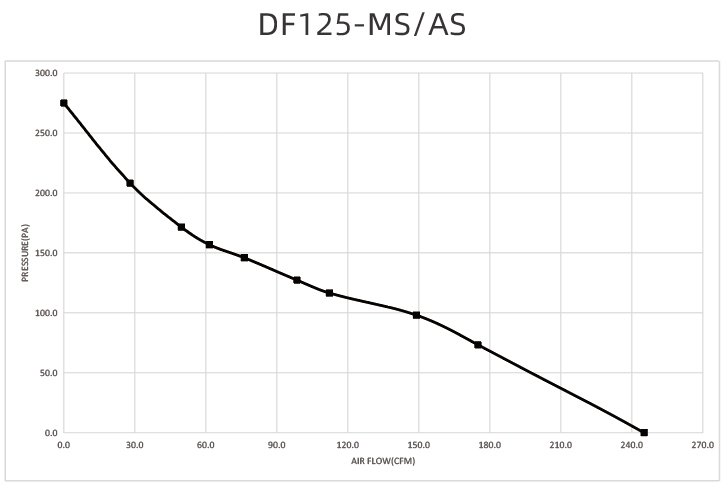

- Airflow
- 245 CFM
- Static Pressure
- 275 Pa
- Noise
- 29 dB(A)
- Material
- PP
- Weight
- 2.4 kg
- Duct Diameter
- 125 mm
- Package Dimensions
- 330*240*210 mm
- Master Carton Dimensions
- 500*345*453 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
