Inline Duct Fans

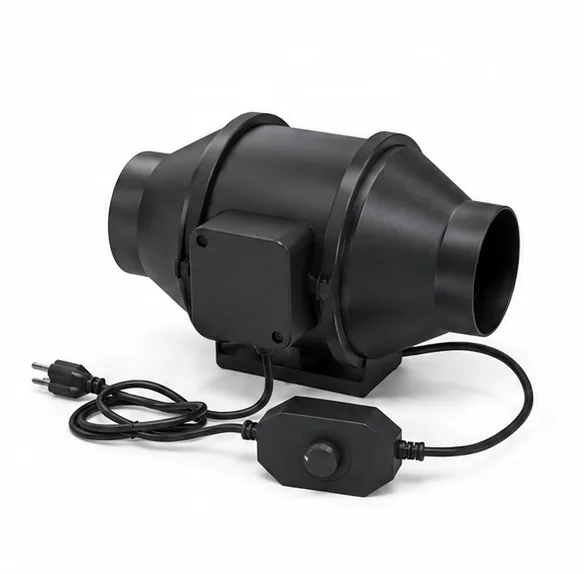

DF100-L
4" / 100MM · POLYPROPYLENE
- Airflow
- 180 CFM
- Static Pressure
- 295 Pa
- Noise
- 31 dB(A)
- Rated Power
- 20 W
PERFORMANCE CURVE
DF100-L is part of our Inline Duct Fans family — Low-Profile Inline Duct Fan. Engineered with an EC motor and a polypropylene housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC
- Product Dimensions
- 304.9x228.1x191 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤0.2 A
- Rated Power
- 20 W
- Speed
- 2500 RPM
- Airflow
- 180 CFM
- Static Pressure
- 295 Pa
- Noise
- 31 dB(A)
- Material
- PP
- Duct Diameter
- 100 mm
- Package Dimensions
- 330*240*210 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
