Inline Duct Fans

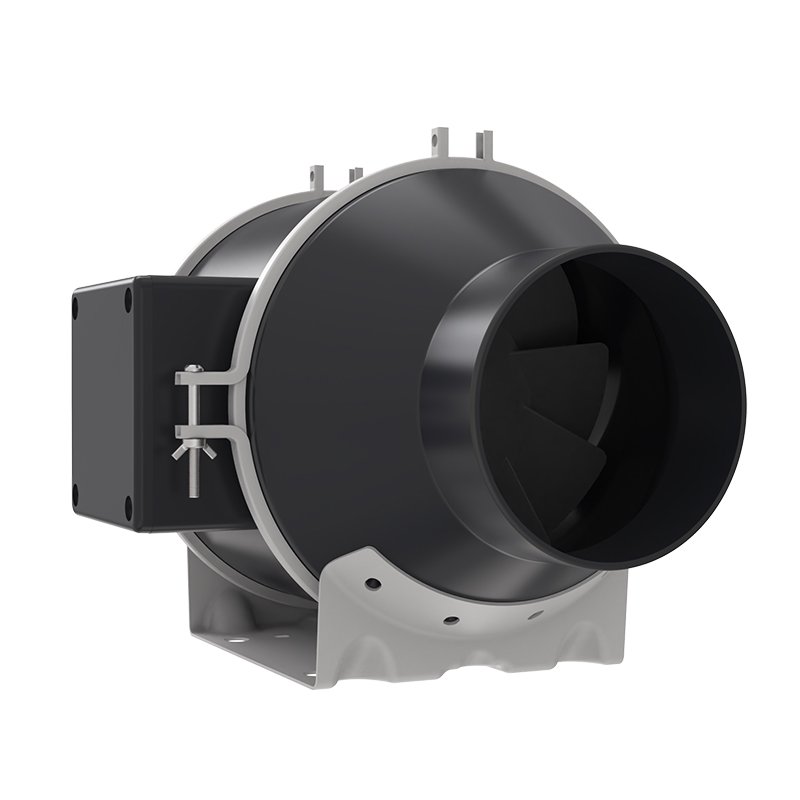

DF100-AS 4-Inch EC Mixed-Flow Inline Duct Fan
4" / 100MM · POLYPROPYLENE
- Airflow
- 212 CFM
- Static Pressure
- 260 Pa
- Noise
- 28 dB(A)
- Rated Power
- 30 W
The DF100-AS 4-Inch EC Mixed-Flow Inline Duct Fan is designed for Hydroponic Grow Rooms, Indoor Cultivation Exhaust, Restroom & Kitchen Exhaust. It provides airflow of 212 CFM, static pressure of 260 Pa, noise of 28 dB(A) and rated power of 30 W. Its published specifications and application data help distributors, OEM buyers and project teams evaluate the model without relying on unverified claims. The verified data also supports product comparison, system planning and quotation requests for the stated applications. It is intended for documented selection rather than generalized claims.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- EC

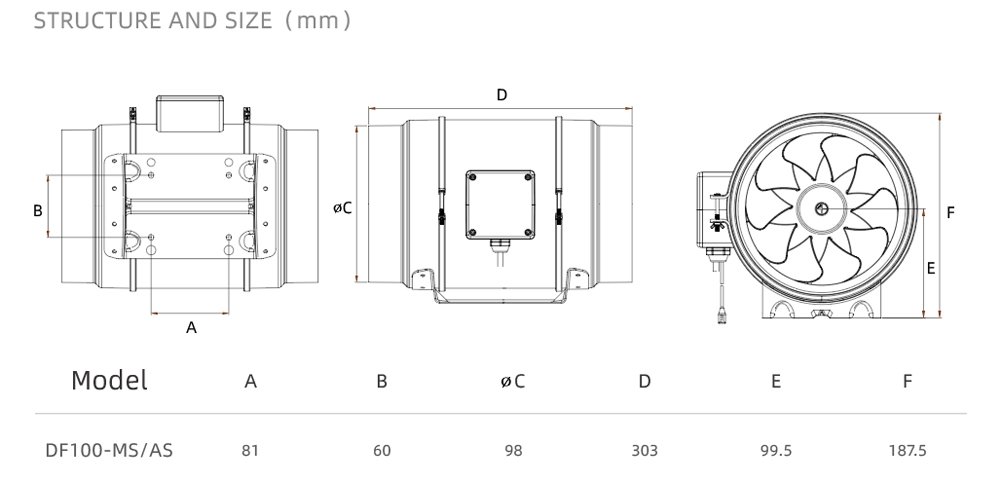

- Product Dimensions
- 303x201x187.5 mm
- Voltage
- 100~240 V
- Frequency
- 50/60 Hz
- Current
- ≤0.45 A
- Rated Power
- 30 W
- Speed
- 2800 RPM
- Airflow
- 212 CFM
- Static Pressure
- 260 Pa
- Noise
- 28 dB(A)
- Material
- PP
- Weight
- 2.3 kg
- Duct Diameter
- 100 mm
- Package Dimensions
- 330*240*210 mm
- Master Carton Dimensions
- 500*345*453 mm
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
