Exhaust & Commercial Ventilation

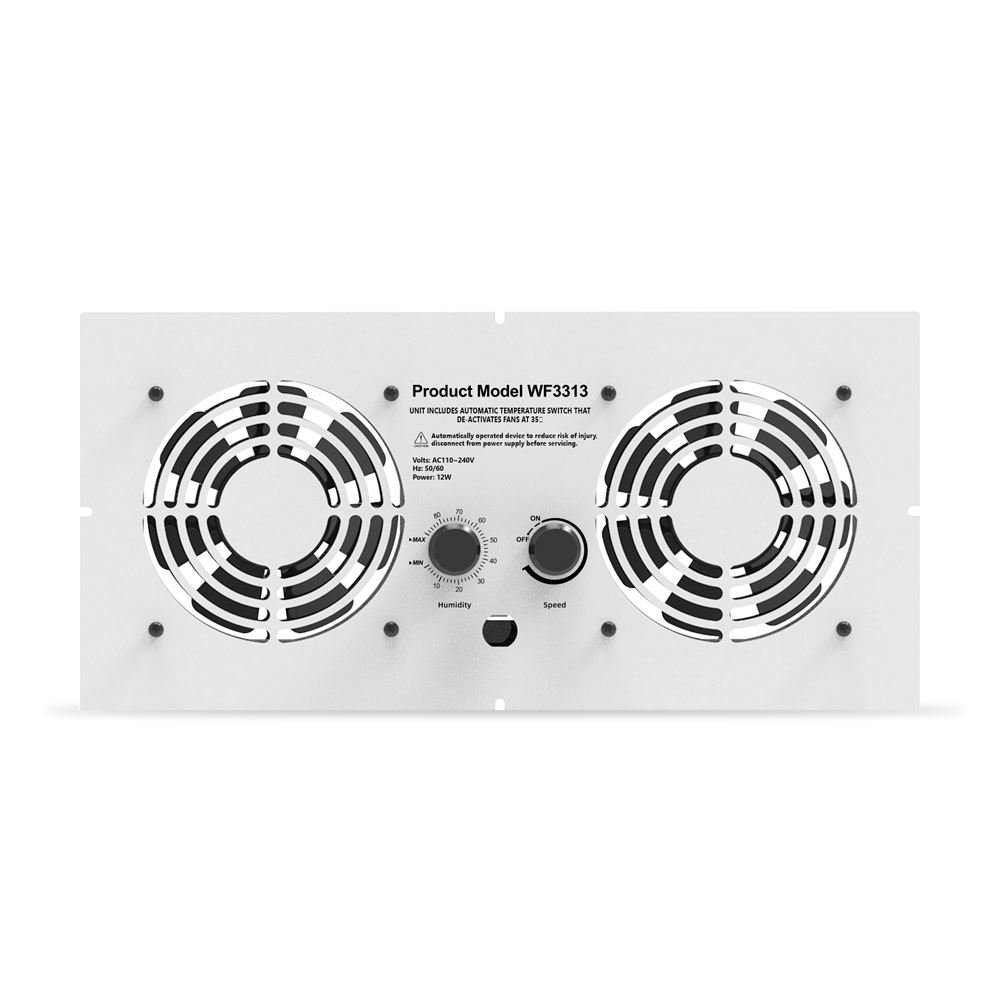

WF3313
377X179x42 mm · METAL
- Airflow
- 220 CFM
- Noise
- 40dB dB(A)
- Voltage
- 110~240 V
- Rated Power
- 12 W
PERFORMANCE CURVE
WF3313 is part of our Exhaust & Commercial Ventilation family — Ventilation Booster Fan. Engineered with a DC motor and a metal housing, it delivers stable performance across the full operating envelope.
- Mixed-flow Impeller Design
- Speed-controllable EC Option
- Acoustic-lined Housing
- IP44 Rated Motor
- Motor Type
- DC
- Product Dimensions
- 377X179x42 mm
- Voltage
- 110~240 V
- Frequency
- 50/60 Hz
- Current
- ≤0.5 A
- Rated Power
- 12 W
- Speed
- 3000 RPM
- Airflow
- 220 CFM
- Static Pressure
- 85 Pa
- Noise
- 40dB dB(A)
- Material
- Metal
- Weight
- 1.9 kg
- Package Dimensions
- 417x100x240 mm
- Master Carton Dimensions
- 432x430x515(8Each） mm
- Quantity per Carton
- 8
- Hydroponic Grow Rooms
- Indoor Cultivation Exhaust
- Restroom & Kitchen Exhaust
- Light Commercial Ventilation
