Exhaust & Commercial Ventilation

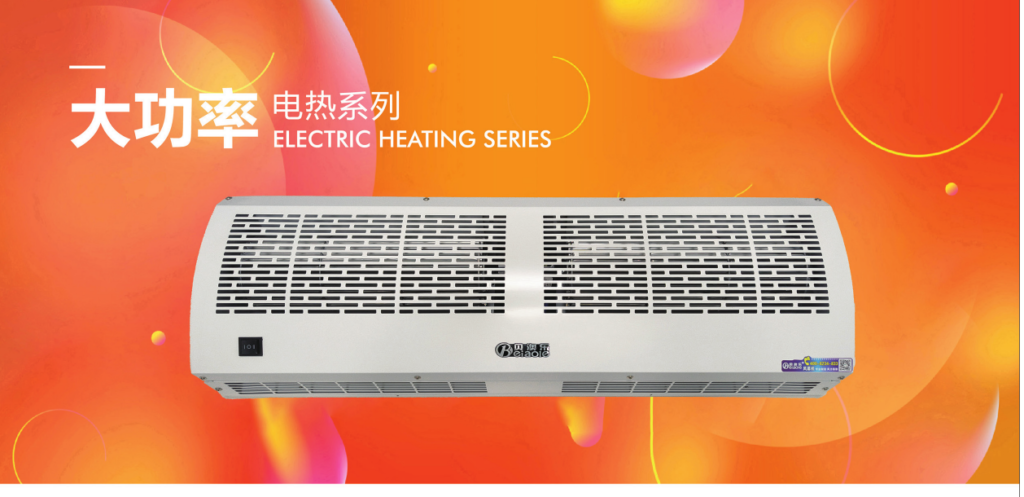

RM-1212-D/Y 1200mm High-Power Electric Heated Air Curtain
1200×184×257 mm
- Airflow — High
- 1200–1400 m³/h
- Motor Power — High
- 220–150 W
- Noise
- <62 dB(A)
- Catalogue Installation Height
- 2.5–3 m
The high-power electric-heated series combines PTC heating with a metal impeller and mechanical-switch operation. Motor power, heater power and high/low airflow values are listed separately. These configurations use the same base model codes as the standard electric-heated series and require distinct product identifiers.
- High-power PTC heating
- Metal impeller
- Mechanical switch
- High/low airflow control
- Product Type
- High-Power Electric Heated Air Curtain
- Product Dimensions
- 1200×184×257 mm
- Model
- RM-1212-D/Y
- Unit Length
- 1200 mm
- Rated Voltage
- 380 V
- Catalogue Installation Height
- 2.5–3 m
- Motor Power — High
- 220–150 W
- Heater Power
- 16 kW
- Air Velocity — High
- 7.5–6.0 m/s
- Airflow — High
- 1200–1400 m³/h
- Temperature Rise — High
- 80–65 K
- Frequency
- 50
- Noise
- <62 dB(A)
- Weight
- 15.5 kg
- Hotels
- Restaurants
- Supermarkets
