RM-1209-D/Y 900mm Electric Heated Air Curtain
900×184×257 mm
- Airflow
- 1000 m³/h
- Motor Power — High
- 160–110 W
- Heater Power — High
- 6–4–2 kW
- Noise
- <55 dB(A)

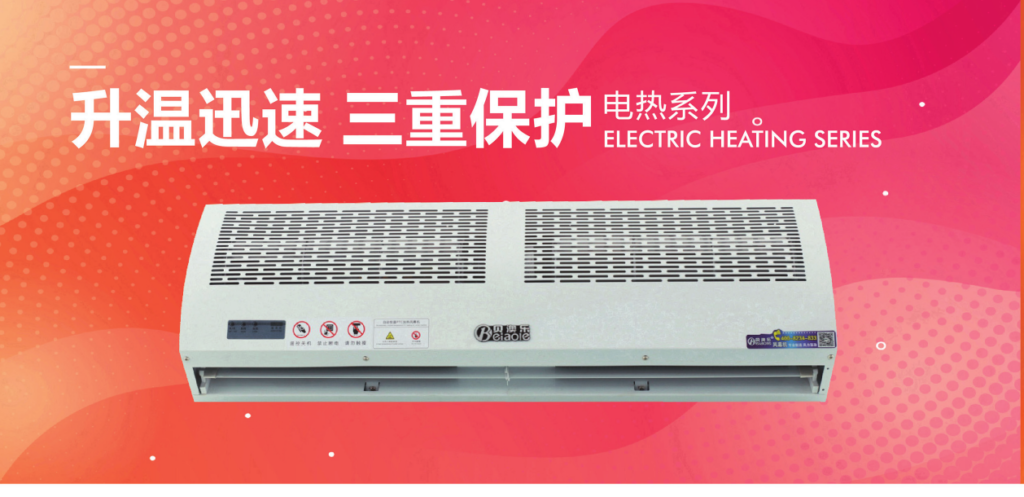

This electric-heated series combines airflow with PTC heating and three heating stages. The catalogue describes infrared remote control and a 60-second delayed shutdown protection function. Motor power and heater power are specified separately.
- PTC electric heating
- Three heating stages
- Infrared remote control
- 60-second delayed shutdown protection
- Product Type
- Electric Heated Air Curtain
- Product Dimensions
- 900×184×257 mm
- Model
- RM-1209-D/Y
- Unit Length
- 900 mm
- Rated Voltage
- 380/220 V
- Catalogue Installation Height
- 2.5–3 m
- Motor Power — High
- 160–110 W
- Heater Power — High
- 6–4–2 kW
- Air Velocity — High
- 8.0–6.5 m/s
- Temperature Rise
- 34–45 K
- Frequency
- 50
- Airflow
- 1000 m³/h
- Noise
- <55 dB(A)
- Weight
- 12 kg
- Hotels
- Restaurants
- Supermarkets
