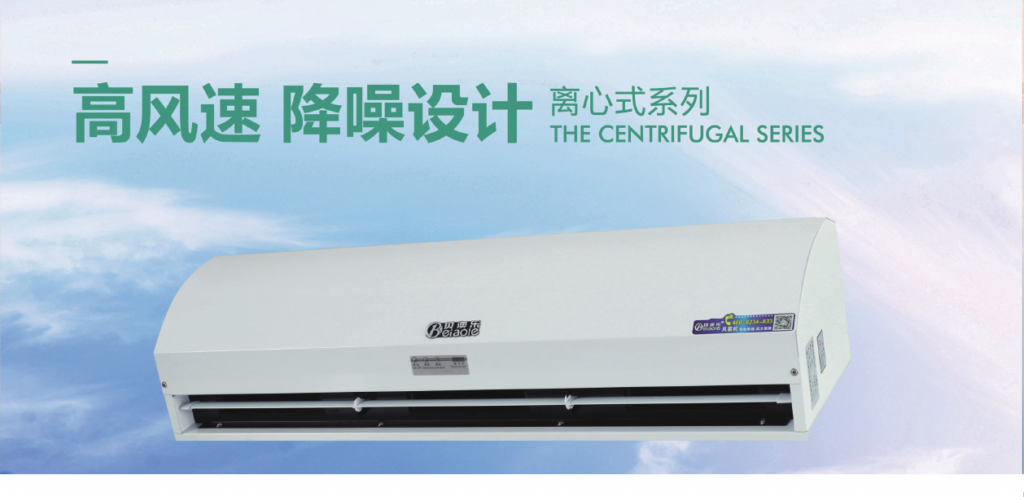

FM-4515-L/Y 1500mm Centrifugal Air Curtain
1500×215×230 mm
- Airflow
- 1900 m³/h
- Input Power
- 380 W
- Noise
- 53 dB(A)
- Catalogue Installation Height
- 4–4.5 m
The Centrifugal Series combines a metal housing with a centrifugal air-delivery design. It provides an adjustable outlet guide vane and high/low airflow settings for commercial entrances. The catalogue lists L/Y suffix options without explaining their individual meanings.
- Centrifugal air-delivery design
- Metal housing
- Adjustable outlet guide vane
- High/low airflow settings
- Product Type
- Centrifugal Air Curtain
- Product Dimensions
- 1500×215×230 mm
- Model
- FM-4515-L/Y
- Unit Length
- 1500 mm
- Rated Voltage
- 220 V
- Catalogue Installation Height
- 4–4.5 m
- Input Power
- 380 W
- Air Velocity
- 16–18 m/s
- Frequency
- 50
- Airflow
- 1900 m³/h
- Noise
- 53 dB(A)
- Weight
- 20 kg
- Hotels
- Restaurants
- Supermarkets
