Exhaust & Commercial Ventilation

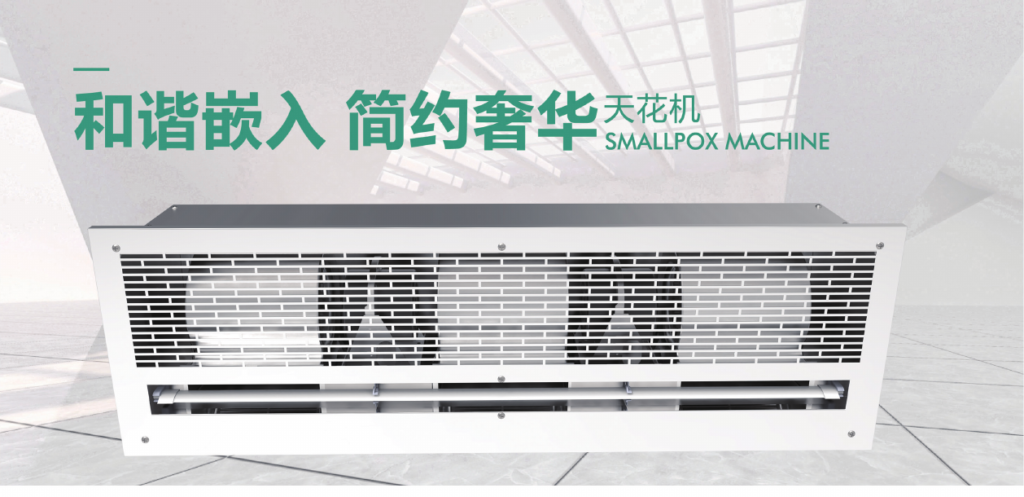

FM-4009CS 900mm Recessed Ceiling Air Curtain
900×320×235 mm
- Airflow
- 1100 m³/h
- Input Power
- 230 W
- Noise
- 49 dB(A)
- Catalogue Installation Height
- 3.5–4 m
A recessed air curtain designed to integrate into a ceiling or overhead installation. The catalogue lists coated-panel and stainless-steel-panel versions with the same performance data for matching lengths. Frequency is specified as 50/60 Hz.
- Recessed installation design
- Coated or stainless-steel front panel
- 50/60 Hz catalogue supply frequency
- Product Type
- Recessed Ceiling Air Curtain
- Product Dimensions
- 900×320×235 mm
- Model
- FM-4009CS
- Unit Length
- 900 mm
- Rated Voltage
- 220 V
- Catalogue Installation Height
- 3.5–4 m
- Input Power
- 230 W
- Air Velocity
- 16–18 m/s
- Front Panel Material
- Stainless steel panel
- Frequency
- 50/60
- Airflow
- 1100 m³/h
- Noise
- 49 dB(A)
- Weight
- 17 kg
- Potential application: commercial entrances with suitable ceiling space; confirm site suitability
